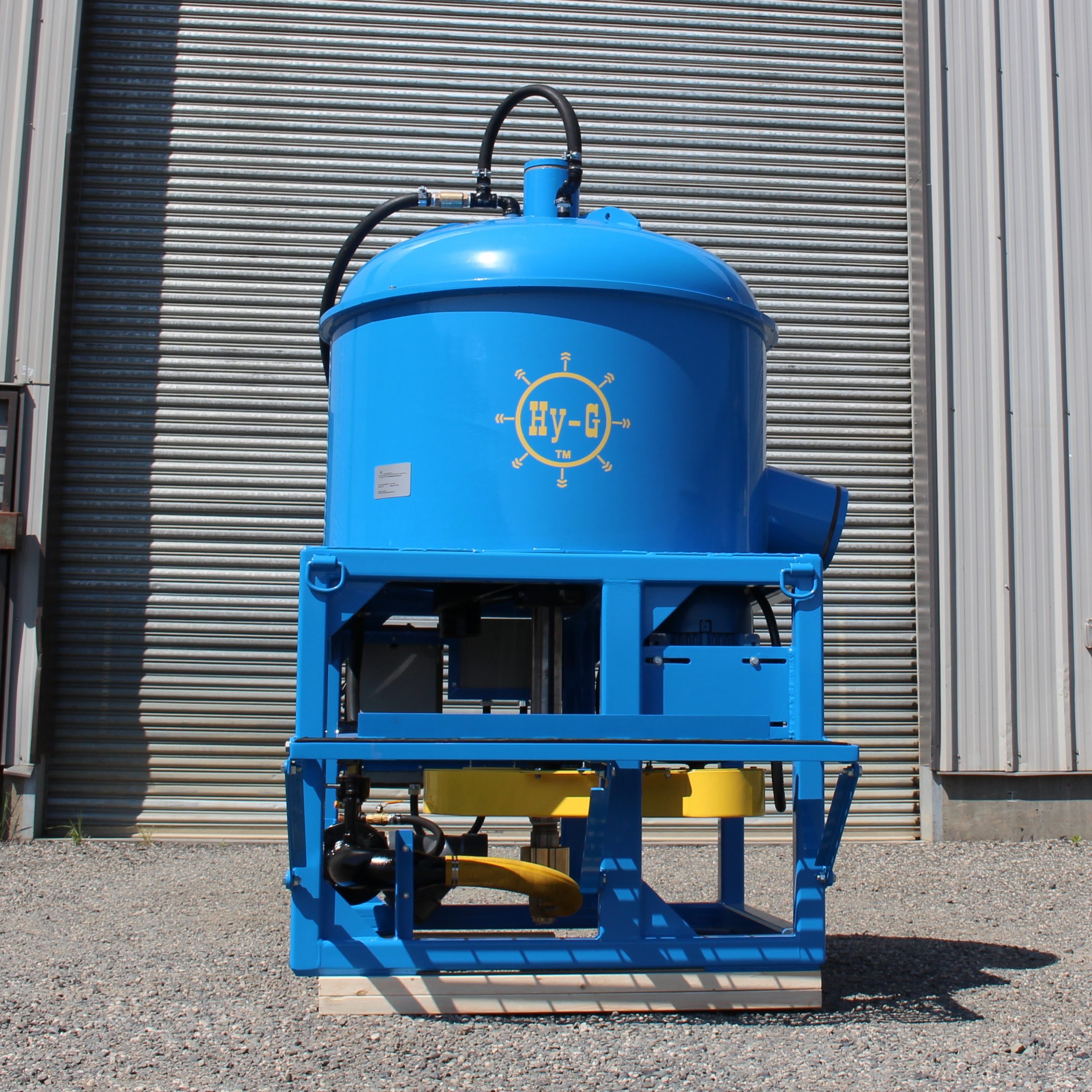

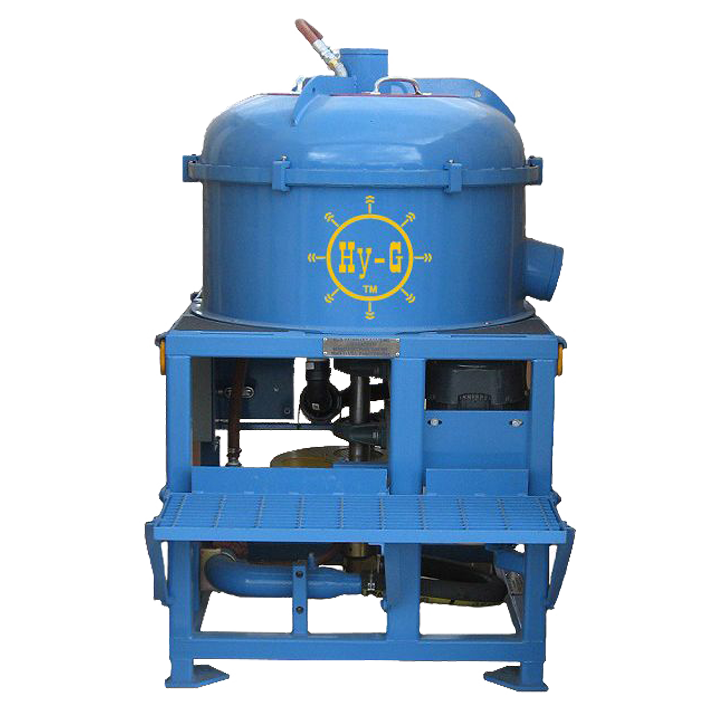

High Capacity Production Concentrator. Continuously Concentrates up to 24 Hour before Clean-out Required. Provides Exceptional Recovery of Fine Gold.

- Provides Exceptional Recovery of fine Gold
- Continuously Concentrates for up to 24 hours without Clean-out
- High Capacity Production Concentrator for Placer Gold Plants
- Precise Control of Water Pressure and Flow
- Spray Nozzle System for Ease of Concentrate Clean-out
- Stainless Steel Bowl with Steel Wear Rings
- Heavy Duty Lifting Eyes for Ease of Installation and Maneuvering
- Removable View Ports for Ease of Process Viewing
- Made in Canada
- Worldwide Shipping Available

• Optimal Capacity: 60 TPH
• Screen Size" Recommended screen size 6mm
• No. of Motors: One (1)
• Motor Horsepower: 25Hp
• Water Reqd: 310 GPM @ 35 PSI
• G-Force: 70 G
