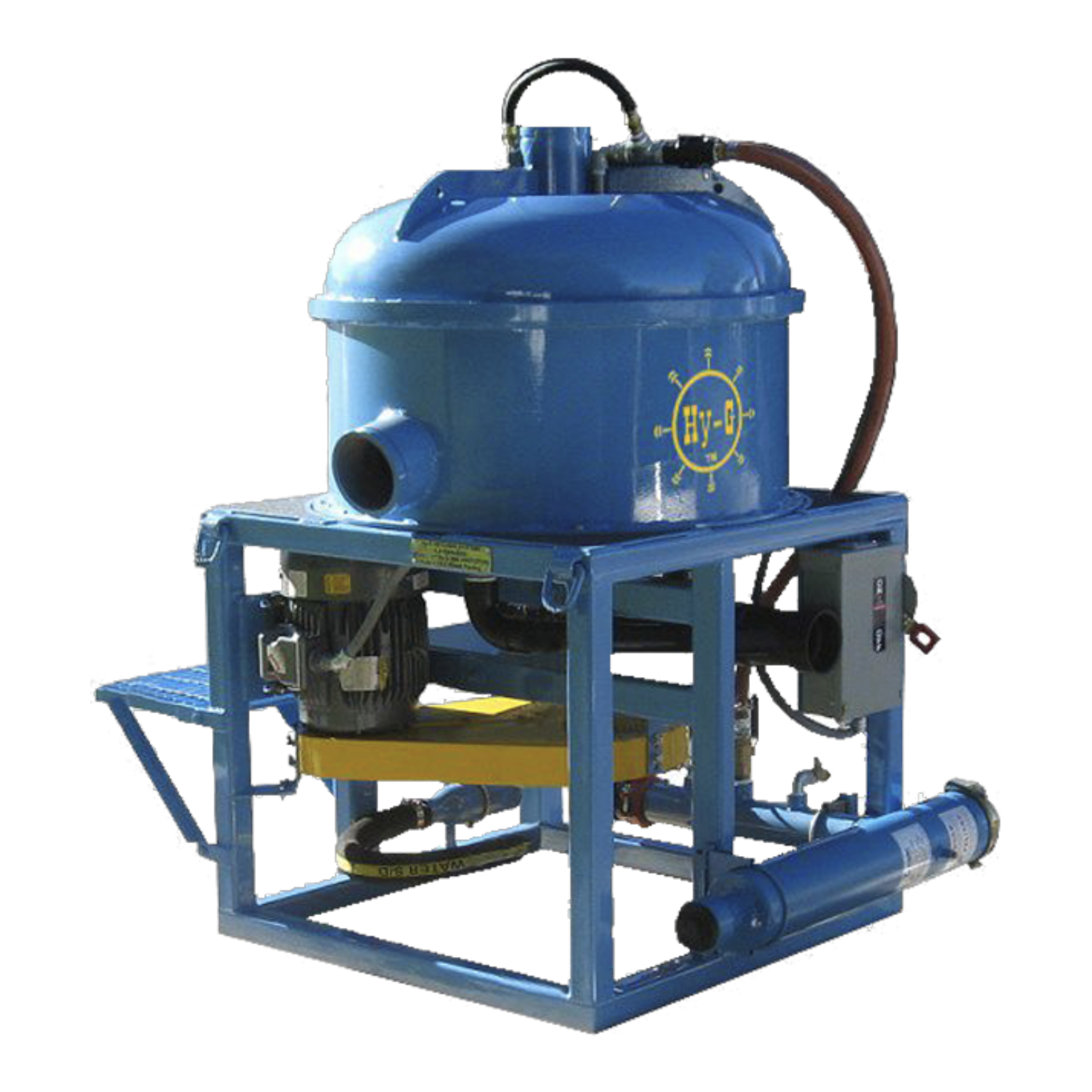

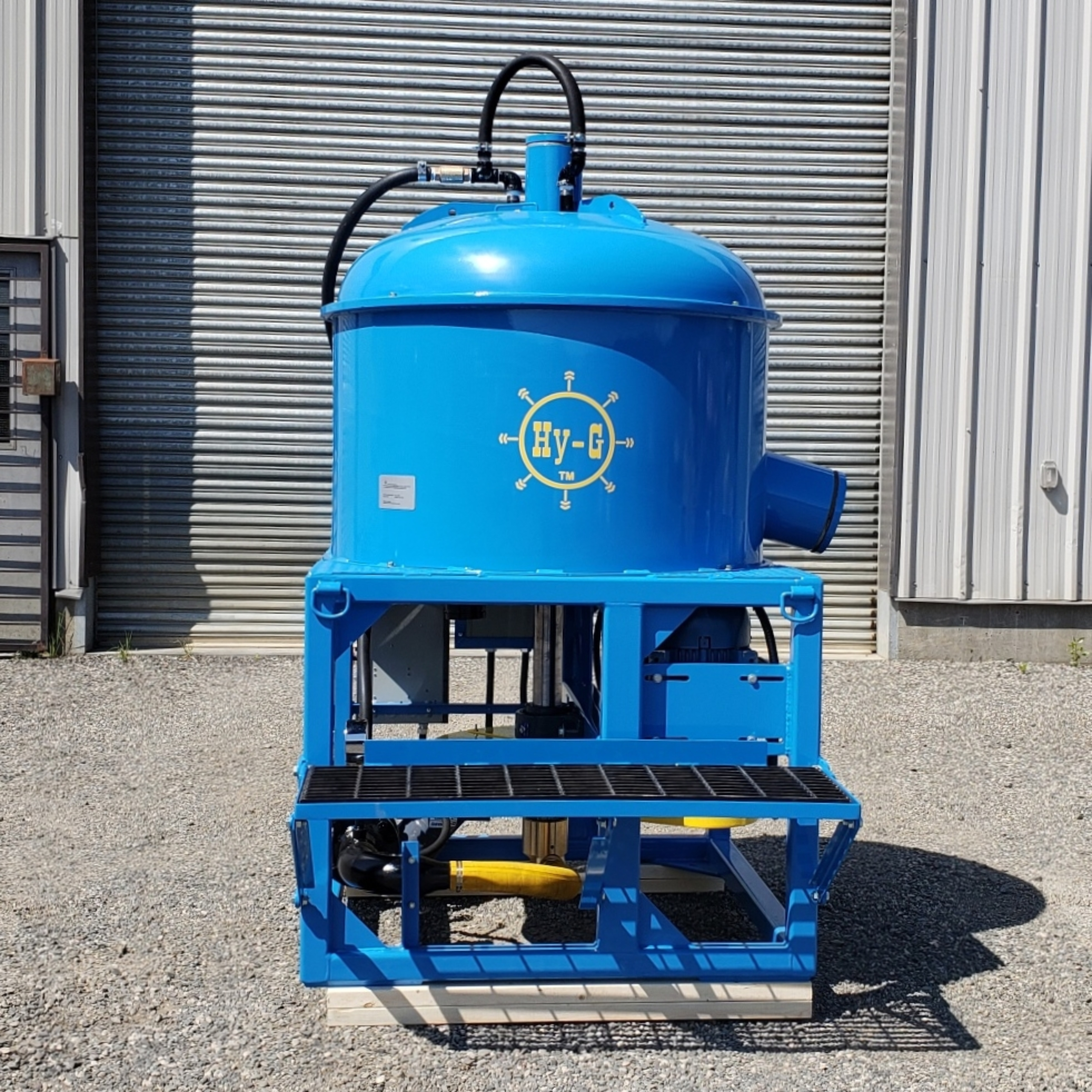

Mid-Range Capacity for a Production Plant. Continually Concentrates up to 24 Hours before Clean-out Required. Provides Exceptional Gold Recovery.

- Provides Exceptional Recovery of fine Gold
- Continuously Concentrates for up to 24 hours without Clean-out
- Mid-Capacity Production Concentrator for Placer Gold Plants
- Precise Control of Water Pressure and Flow
- Removable View Ports for Ease of Process Viewing
- Spray Nozzle System for Ease of Concentrate Clean-out
- Heavy Duty Lifting Eyes for Ease of Installation and Maneuvering
- Stainless Steel Bowl with Steel Wear Rings
- Made in Canada
- Worldwide Shipping Available

• Optimal Capacity: 30 TPH
• Screen Size: Recommended Screen Size 6 mm
• No. of Motors: One (1)
• Motor Horsepower: 7.5 Hp
• Water Reqd: 115 GPM @ 35 PSI
• G-Force: 70 G
