Hy-G Concentrators

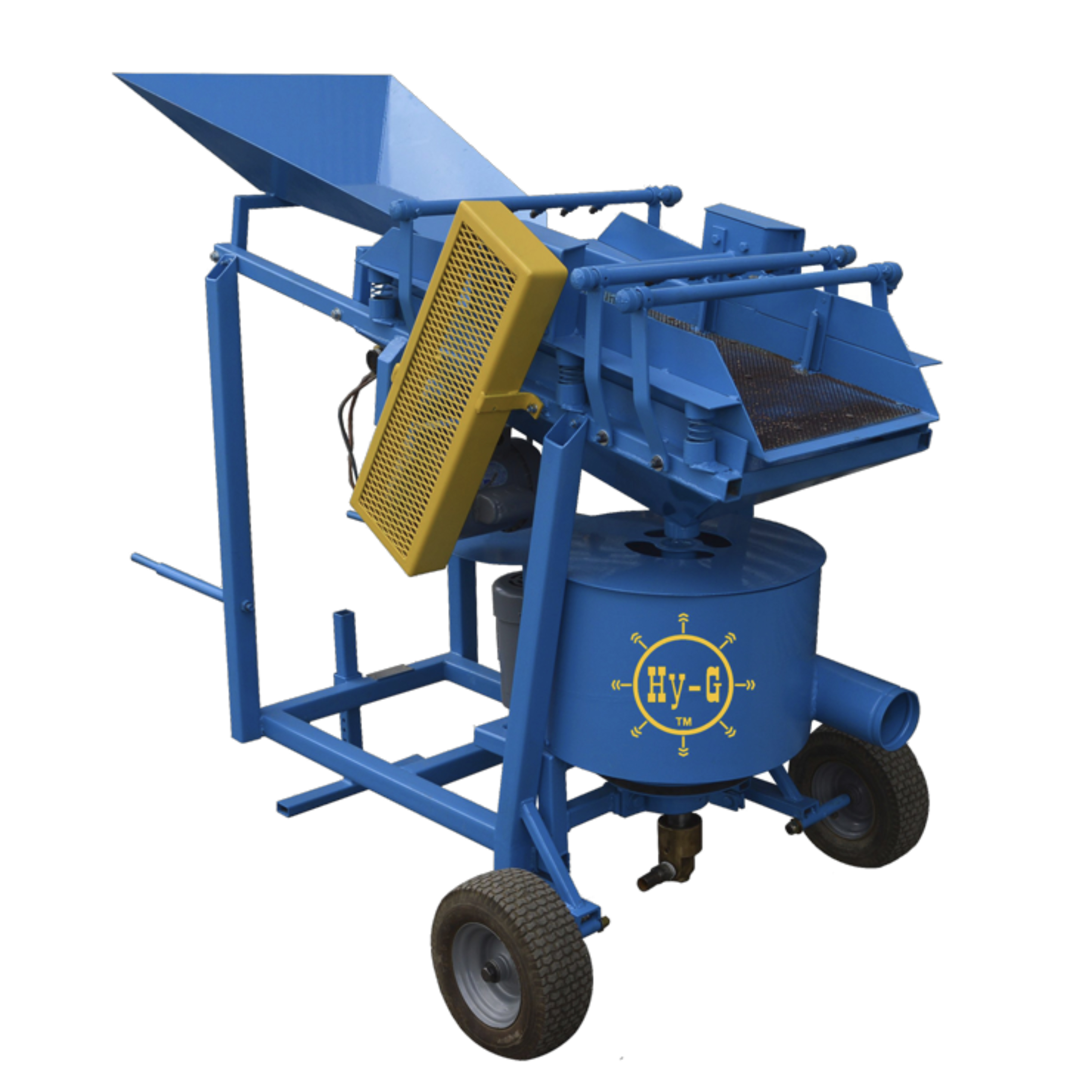

Hy-G P12T Concentrator Test Plant

$26.41
GET A QUOTE
Ideal for Bulk Clean-up of .20 inch(5mm) Minus Concentrates. Portable.


- Provides Exceptional Recovery of fine Gold
- Ideal for Bulk Clean-up of .20 inch(5mm) Minus Concentrates
- Portable
- Stainless Steel Bowl with Steel Wear Rings
- Provides Precise Control of Water Pressure and Flow
- Made in Canada
- Worldwide Shipping Available

  • Optimal Capacity: 6 TPH
  • Screen Size: 6 mm Other Options Available
  • No. of Motors: Two (2)
  • Motor Horsepower: One 1/4 Hp One 3/4 Hp
  • Water Reqd: 60 GPM @ 35 PSI
  • G-Force: 70 G
  • Exceptional recovery of fine gold
  • Continuously concentrates up to 24 hours without a clean-out
  • Heavy Duty Design
  • Made In Canada and USA
  • Placer Mining
  • Alluvial Mining
  • Dredging
  • Upgrading Concentrates
  • Prospecting
  • Drilling & Bulk Sampling
  • Hard Rock Mining
  • Recycling
